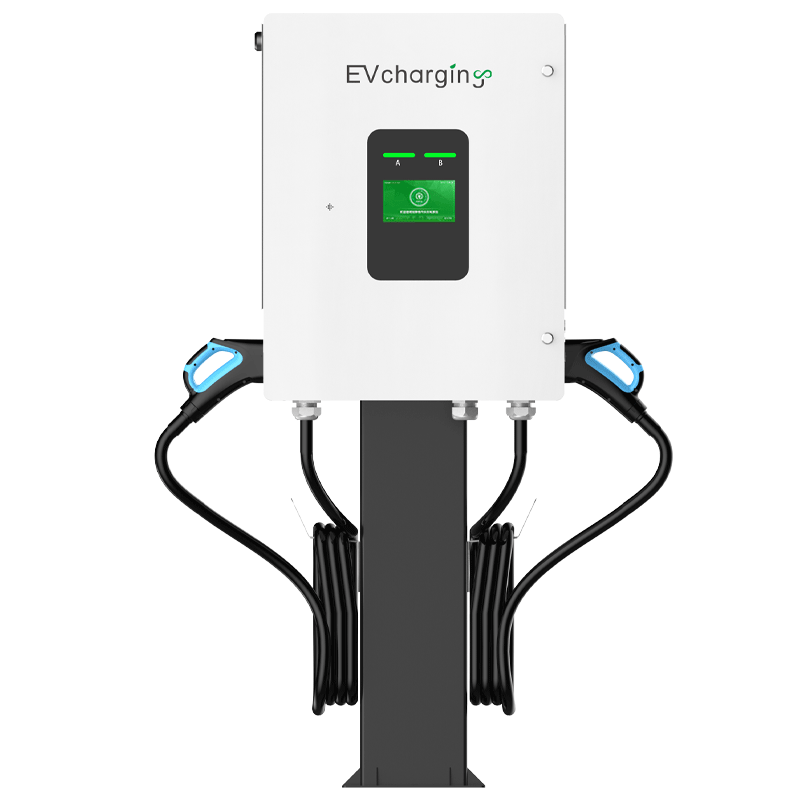

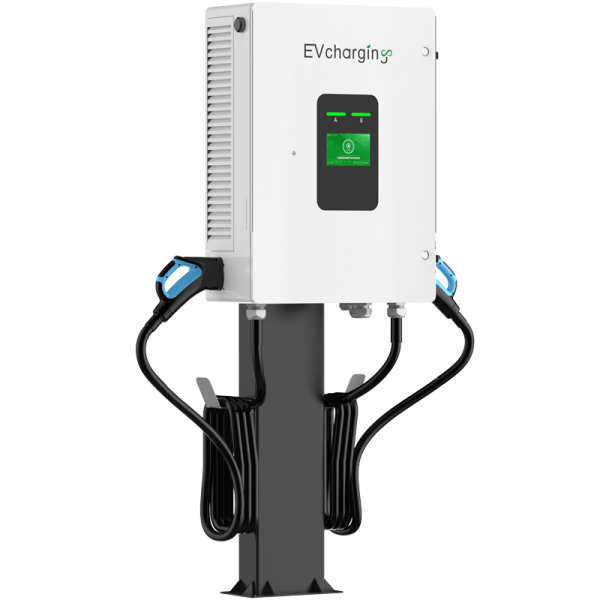

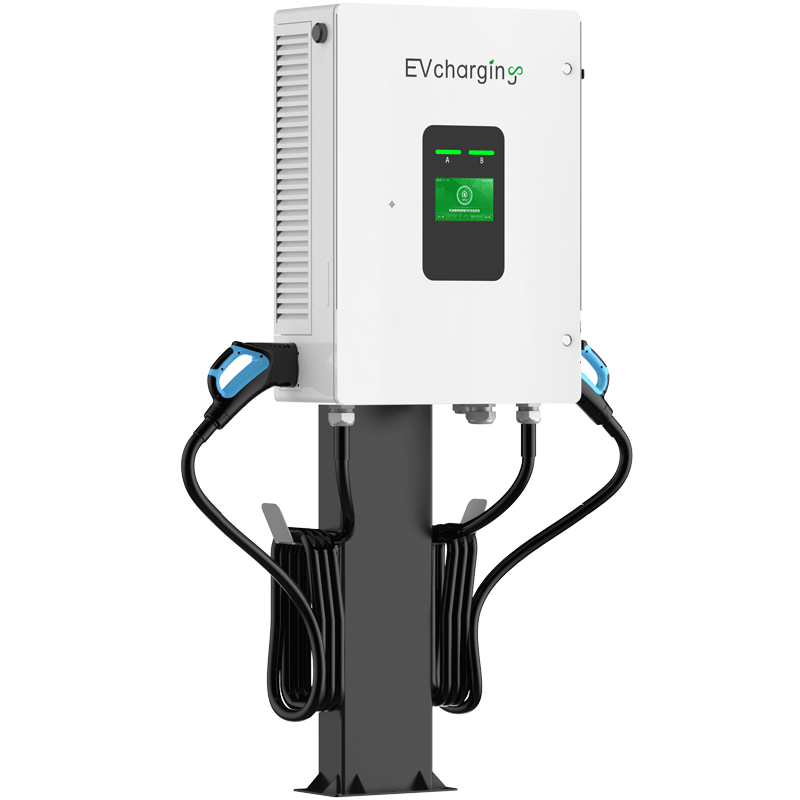

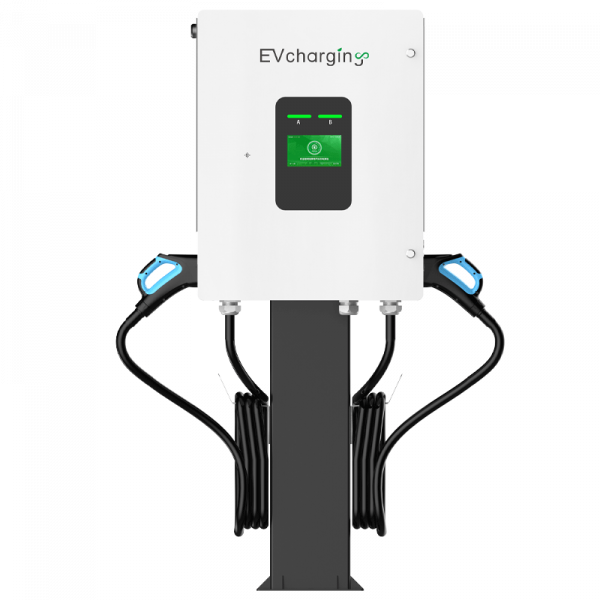

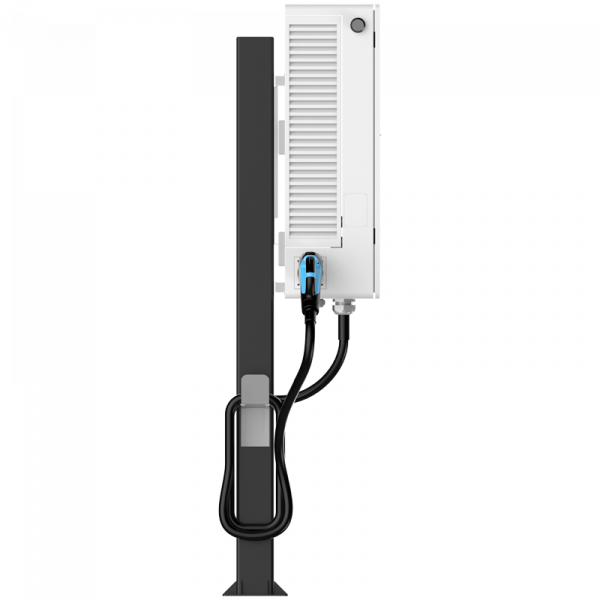

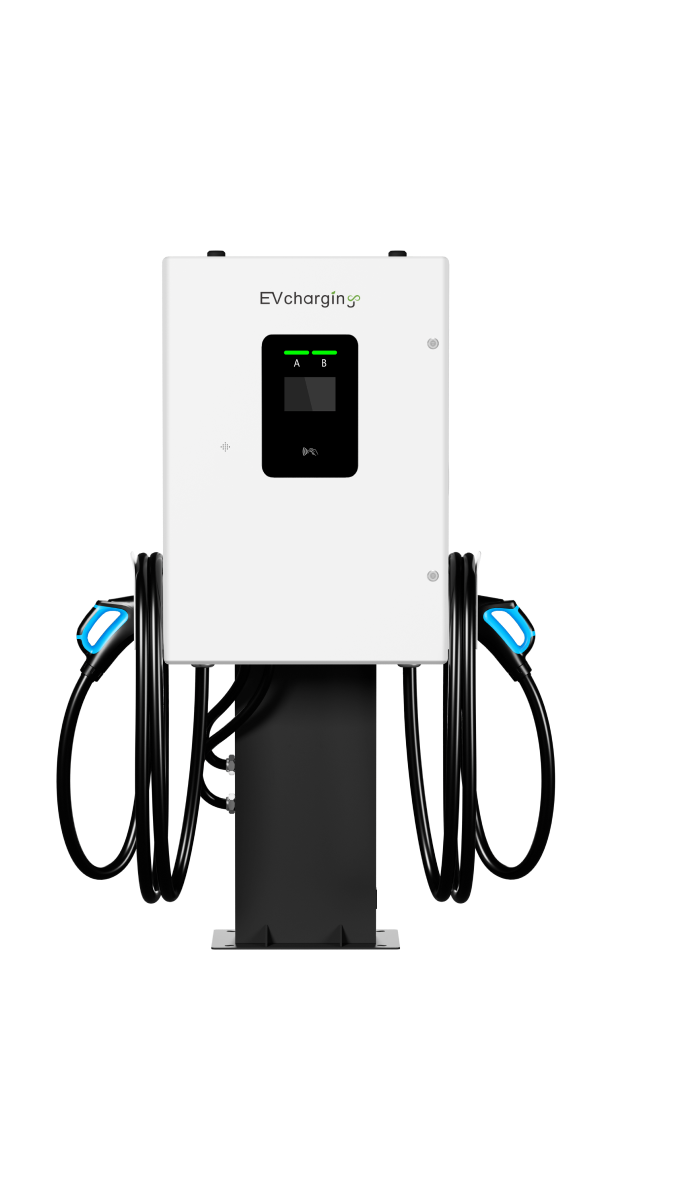

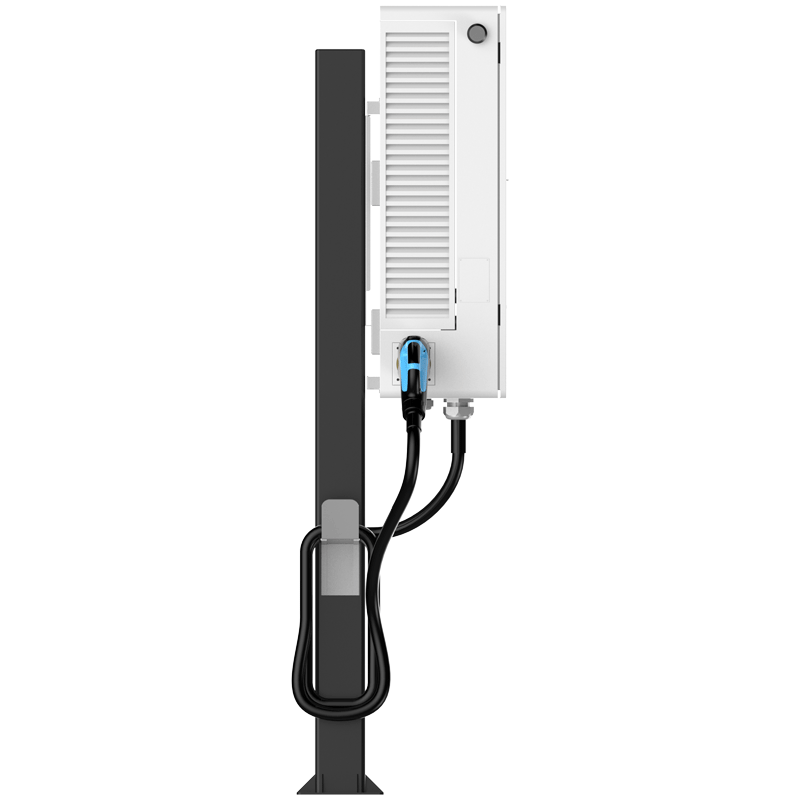

20-80kW Atlas DC Wallbox

Wallbox series DC charger features an integrated design with compact dimensions. Safety protections include protection against short circuit, over-voltage, under-voltage, over temperature, surge, lightning; detection of grounding, insulation, phase deficiency; RCD protection. Wall-mounted and pole-mounted types are available.

Product Details

Safe and Reliable
53-fold electrical protections
Dual 4G card redundancy always online
Exceptional User Experience
Fast charging, maximum current 200A, high efficiency 96%
Support APP, NFC, credit card
Integrated cable management system is easy to stretch support
Support site energy management
Easy Maintenance
Unique module pre-installation design
Automatic inspection platform
Remote diagnostics and OTA upgrade

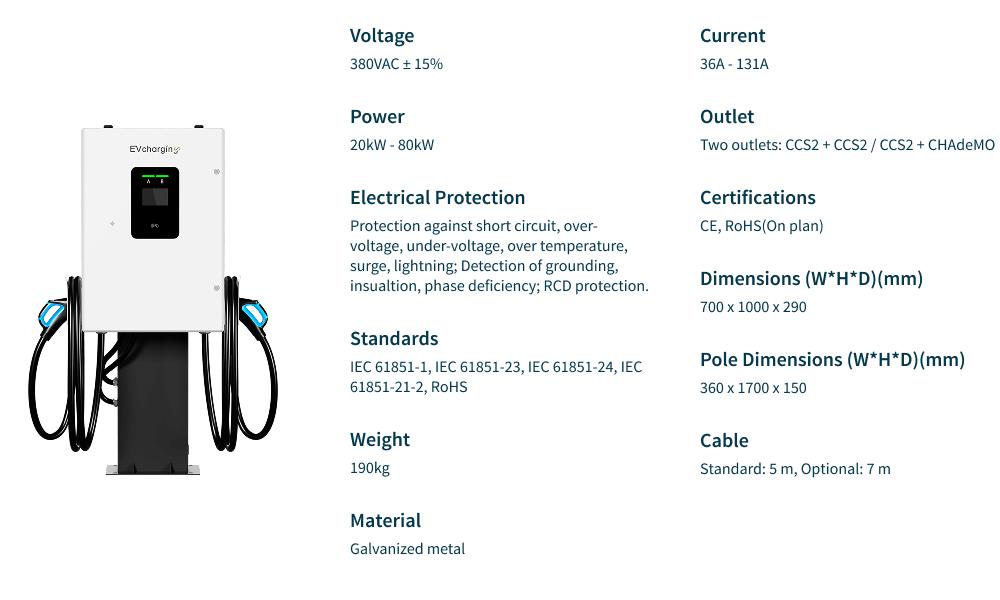

Specification

Voltage
380VAC ± 15%
Power
20kW - 80kW
Standards
IEC 61851-1, IEC 61851-23, IEC 61851-24, IEC 61851-21-2, RoHS
Weight
190kg
Material
Galvanized metal
Electrical Protection
Protection against short circuit, over-voltage, under-voltage, over temperature, surge, lightning; Detection of grounding, insualtion, phase deficiency; RCD protection.
Current
36A - 131A
Outlet
Two outlets: CCS2 + CCS2 / CCS2 + CHAdeMO
Certifications
CE, RoHS(On plan)
Dimensions (W*H*D)(mm)
700 x 1000 x 290
Pole Dimensions (W*H*D)(mm)
360 x 1700 x 150
Cable
Standard: 5 m, Optional: 7 m
