360-600kw Atlas DC Fast Charger (Split Charging Station)

360-600kw Atlas DC Fast Charger (Split Charging Station)

The 360-600kw Atlas DC Fast Charger combines a streamlined aesthetic with a practical, pre-installed modular design for effortless setup. It is equipped with advanced safety features and offers broad compatibility, serving as a versatile EV DC fast charger for numerous electric vehicle models. This robust commercial DC fast charger is ideally suited for a wide range of applications, including public bus charging station networks, retail centers, fuel stations, and residential parking lots – making it a reliable choice for any electric car charging station business.

Product Details

High Safety
48-fold software protections for the EV DC fast charger system
13-fold hardware protections: EMC, emergency shutdown, etc., ensuring a secure public car charging station
Robust, all weatherproof design
Reliable Design
Highly reliable DC charger module: fully sealed with glue
Remote services with firmware updates for EV quick charger performance
High ROI
Easy installation and O&M for your electric car charging station business
Industry-leading energy efficiency >95%, module efficiency > 96%
AI Energy Management Algorithm to optimize commercial car charging operations
Future Proof
Scale up to 500 A liquid cooled CCS cable for easy handling
Modular, scalable architecture
Fully converged power distribution and sharing

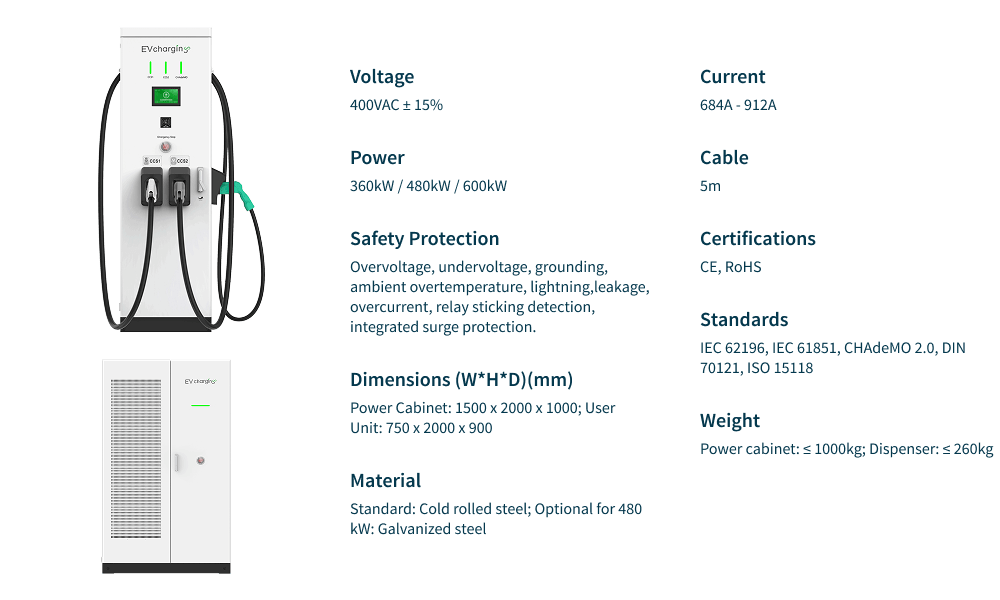

Specification

Voltage
400VAC ± 15%
Power
360kW / 480kW / 600kW
Dimensions (W*H*D)(mm)
Power Cabinet: 1500 x 2000 x 1000; User Unit: 750 x 2000 x 900
Material
Standard: Cold rolled steel; Optional for 480 kW: Galvanized steel
Safety Protection
Overvoltage, undervoltage, grounding, ambient overtemperature, lightning, leakage, overcurrent, relay sticking detection, integrated surge protection.
Current
684A - 912A
Cable
5m
Certifications
CE, RoHS
Standards
IEC 62196, IEC 61851, CHAdeMO 2.0, DIN 70121, ISO 15118
Weight
Power cabinet: ≤ 1000kg; Dispenser: ≤ 260kg

Get a Quote

Frequently Asked Questions (FAQ)

This EV DC fast charger offers three high-power outputs: 360kW, 480kW, and 600kW. The choice depends on your site’s electrical capacity and the desired charging speed for your fleet or customers.

Your safety is our top priority. This commercial DC fast charger is CE and RoHS certified. It features a comprehensive suite of hardware and software protections, including defense against overvoltage, undervoltage, lightning, leakage, and relay sticking, ensuring safe operation for any public car charging station or private fleet depot.

Yes, this EV quick charger is designed as a universal DC charger car solution. It complies with major global standards, including IEC 62196, CHAdeMO 2.0, and ISO 15118, ensuring compatibility with a wide range of electric vehicle models, which is crucial for a successful electric car charging station business.

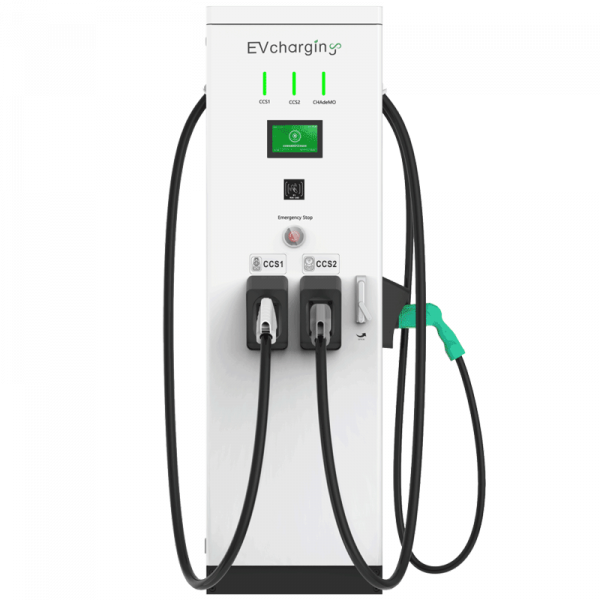

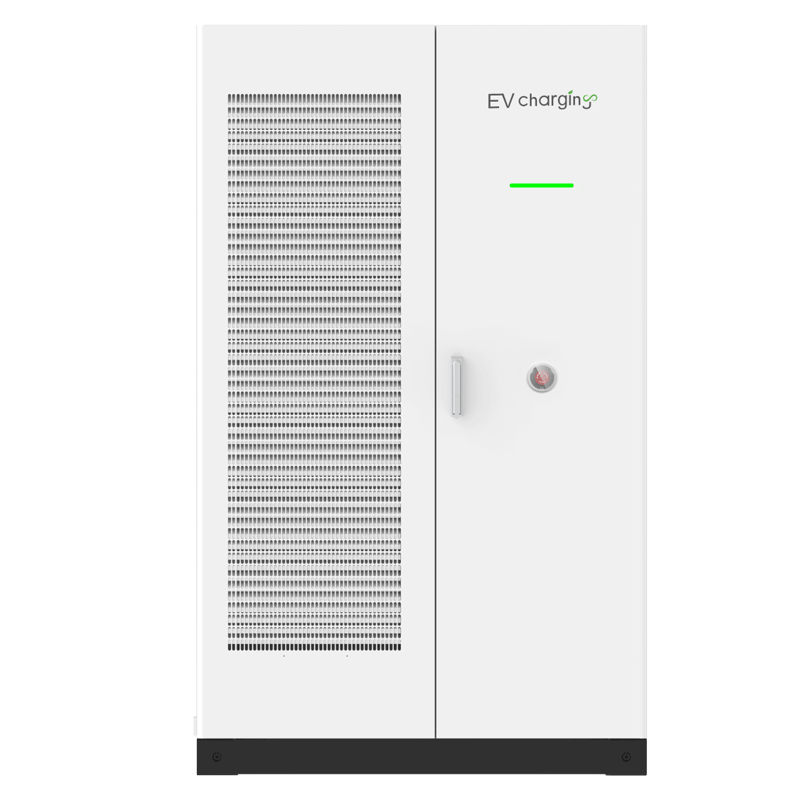

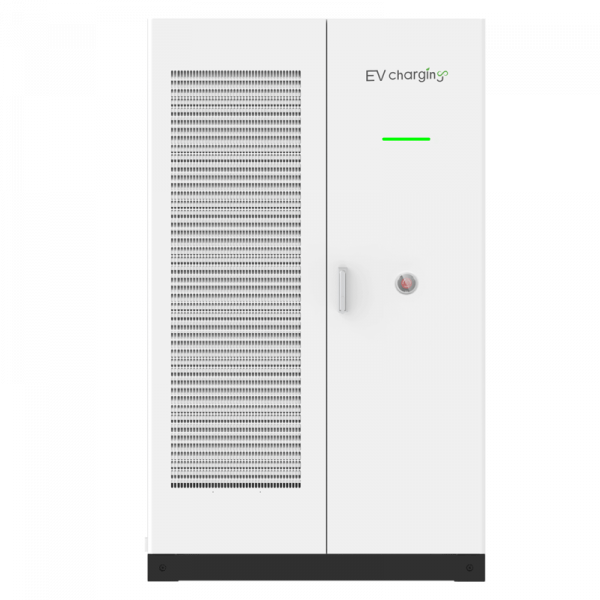

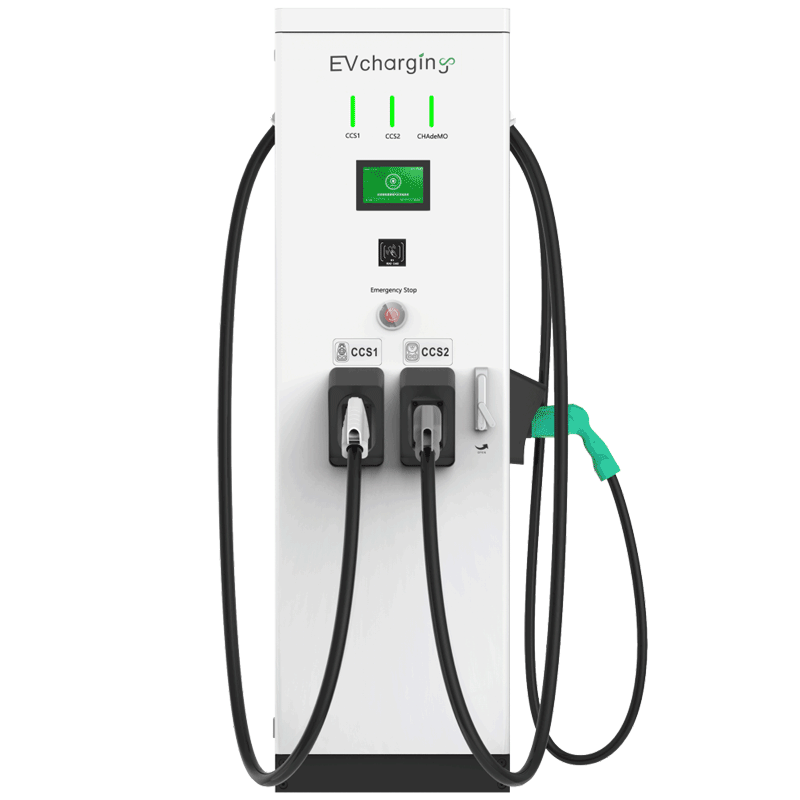

The system consists of a power cabinet (1500x2000x1000mm, ≤1000kg) and a user unit (750x2000x900mm, ≤260kg). Due to the size and weight, site preparation must account for a strong, level concrete foundation. This is a standard requirement for a high-power bus charging station or any large-scale public car charging station installation.

Yes, we provide EV charger OEM services for partners and car charging companies with large-volume needs or specific branding requirements. Please contact our sales team to discuss custom solutions for your commercial car charging
