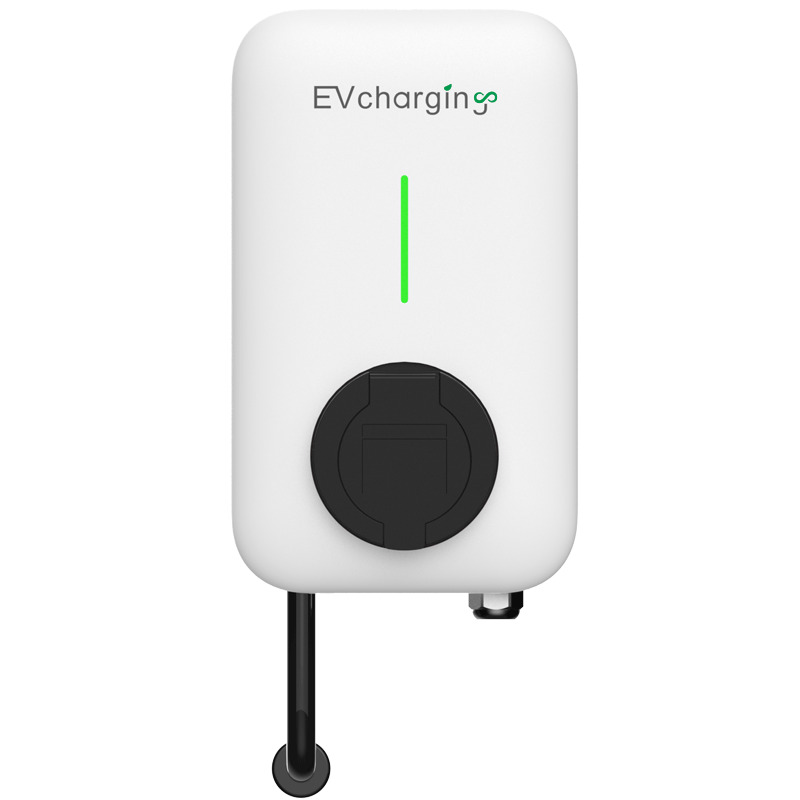

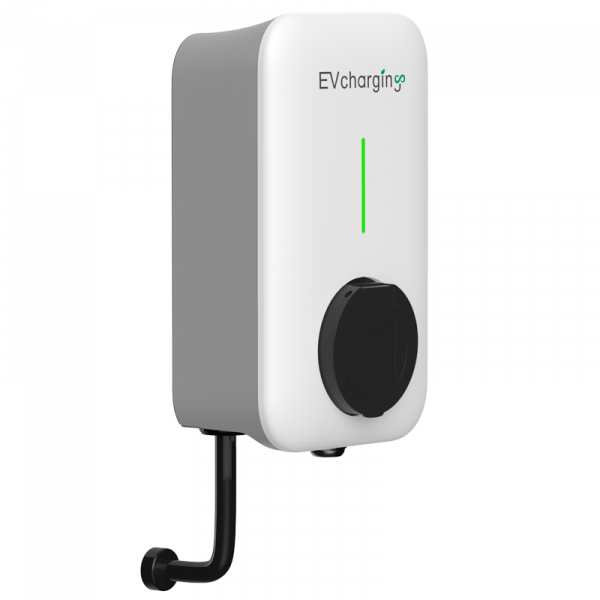

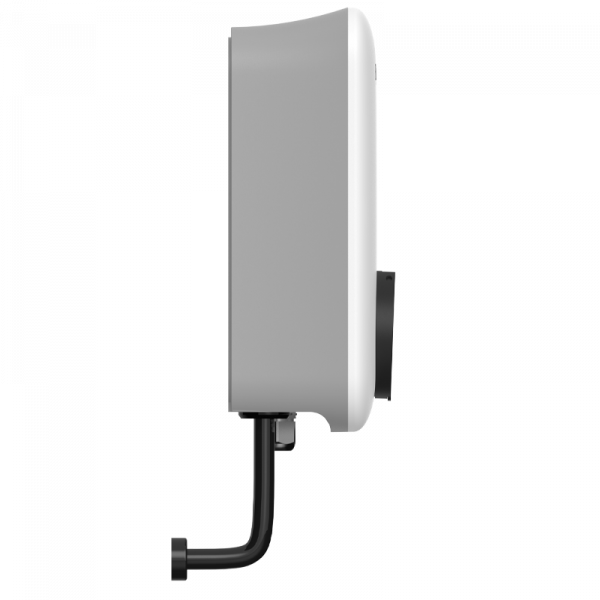

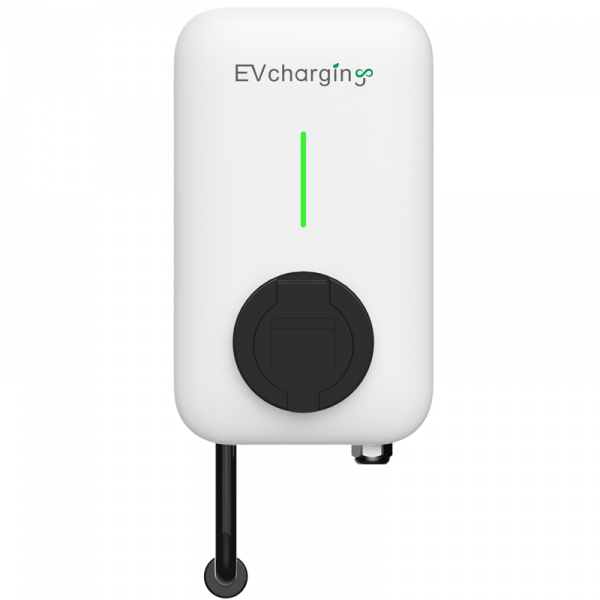

7/11kW Atlas Home Charger

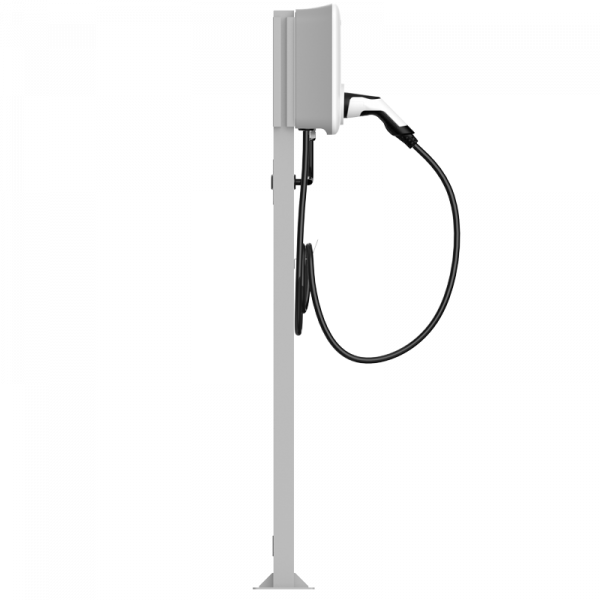

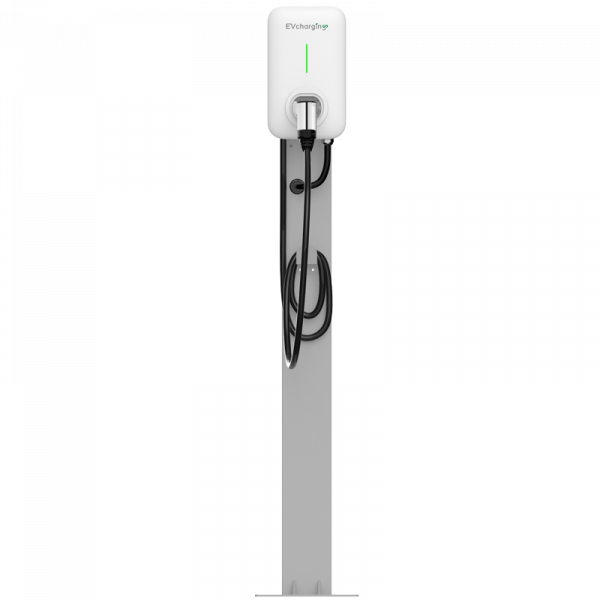

With a sleek design, effortless installation and maintain. Safety protections include over-current, over-voltage, under-voltage, over-temperature, sticking relay, ground continuity monitoring, household power use protection, residual current protection, integrated surge protection. Wall-mounted and pole-mounted types are available.

Document Download
Get a Quote
15
No. T8AUK 116724 0008 Rev. 00_CERT.pdf - Page 1 of 3
No. T8AUK 116724 0007 Rev. 00.pdf - Page 1 of 2
No. T8A 116724 0005 Rev. 02_CERT.pdf - Page 1 of 3
Previous image
Next image

Product Details

Extreme Safety
Current limiting protection to safeguard home power use and prevent nuisance tripping
9-fold protections for user and vehicle safety
Certified by the third party
High-value Quality
Robust, weatherproof design, up to IP65, -40C to 60°C operating temperature
Always connected with Wi-Fi, Bluetooth, Ethernet (optional), remote support and firmware upgrades
Ultimate Experience
Compatible with every electric vehicle
Easy to install and maintain
Continuous uptime without abnormal interruption
Intelligent Management
Dynamic load management, efficient energy distribution for optimal charging
Scheduled charging time for lower rates
OCPP-compliant

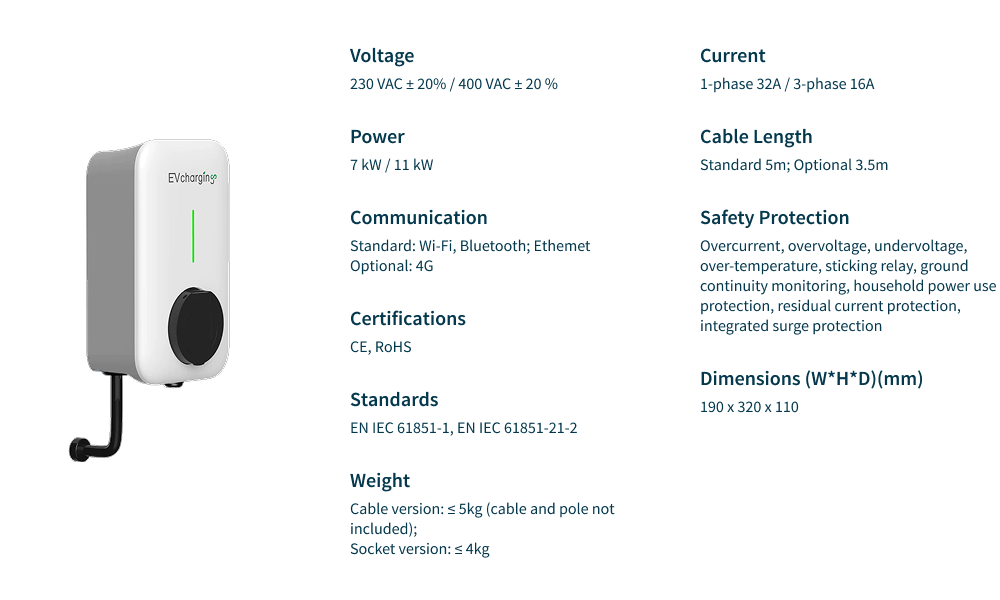

Specification

Voltage
230 VAC ± 20% / 400 VAC ± 20 %
Power
7 kW / 11 kW
Communication
Standard: Wi-Fi, Bluetooth; Ethemet Optional: 4G
Certifications
CE, RoHS
Standards
EN IEC 61851-1, EN IEC 61851-21-2
Weight
Cable version: ≤ 5kg (cable and pole not included);Socket version: ≤ 4kg
Current
1-phase 32A / 3-phase 16A
Cable Length
Standard 5m; Optional 3.5m
Dimensions (W*H*D)(mm)
190 x 320 x 110
Safety Protection
Overcurrent, overvoltage, undervoltage, over-temperature, sticking relay, ground continuity monitoring, household power use protection, residual current protection, integrated surge protection
