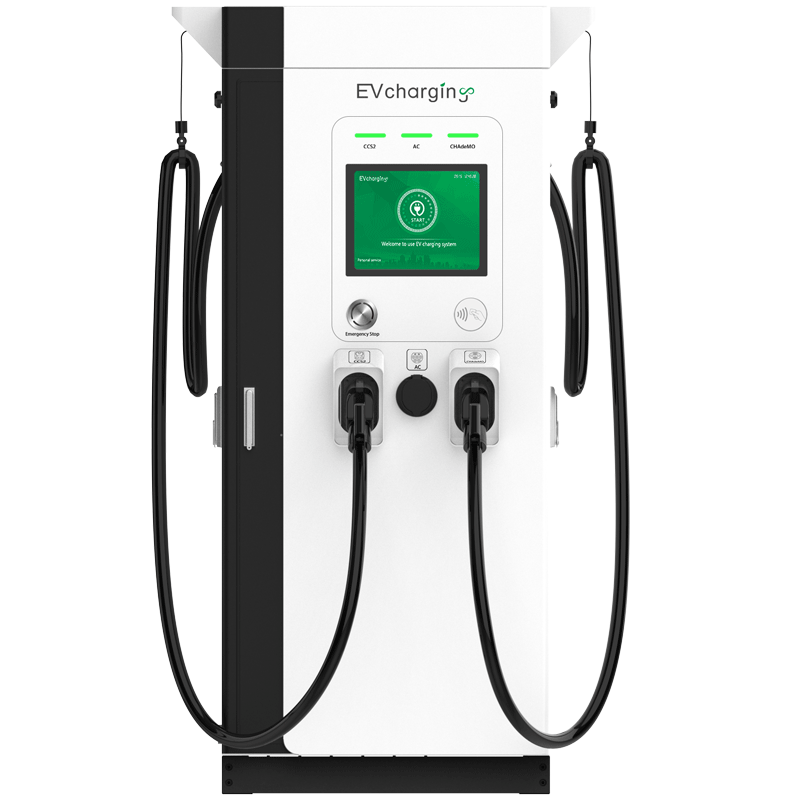

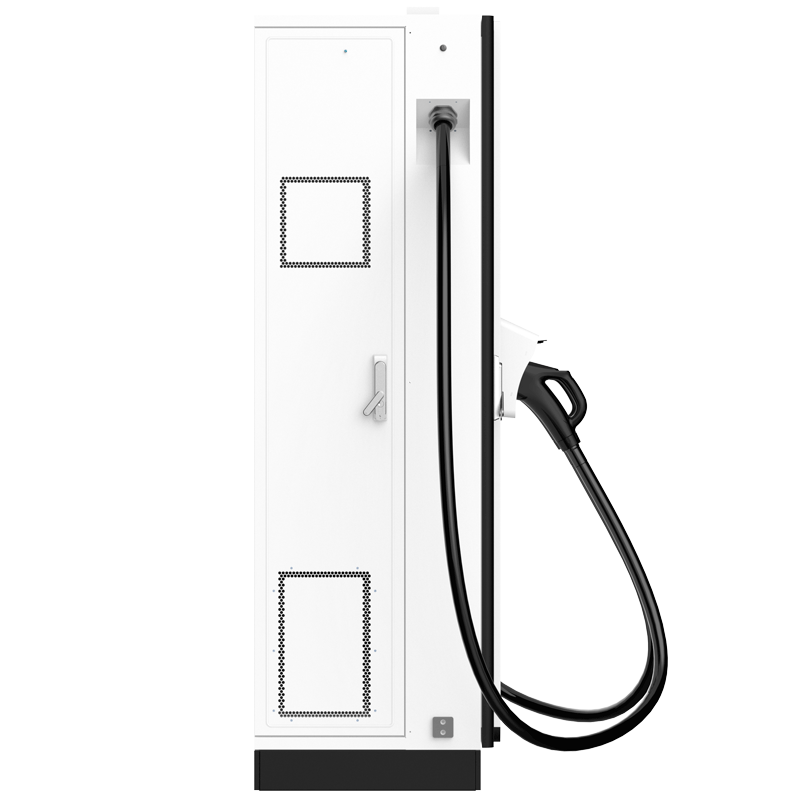

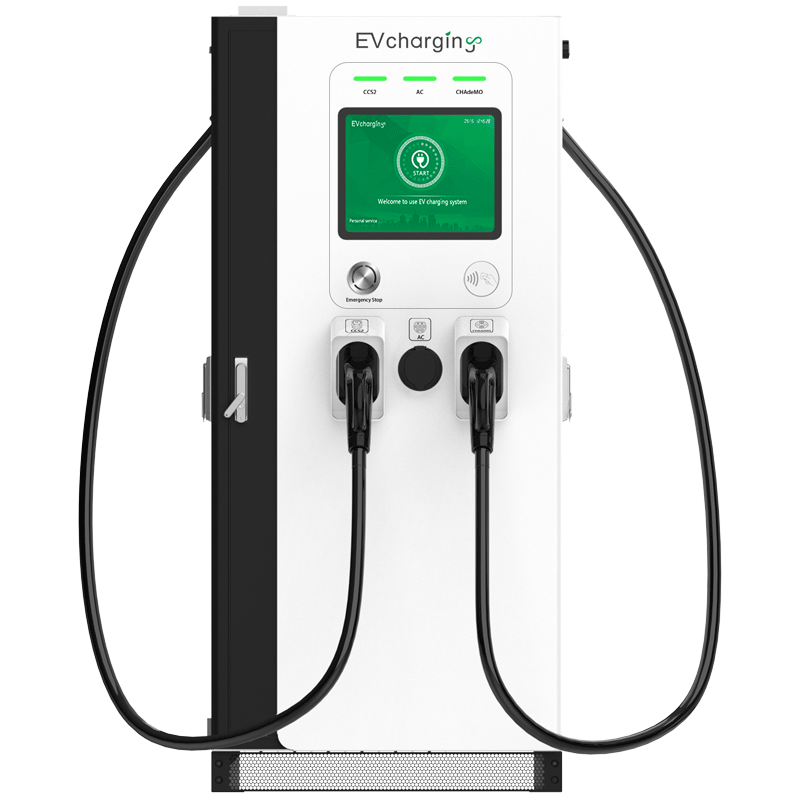

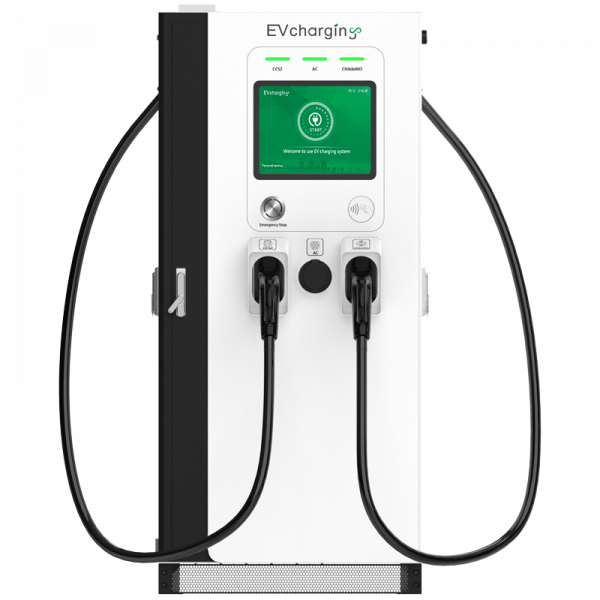

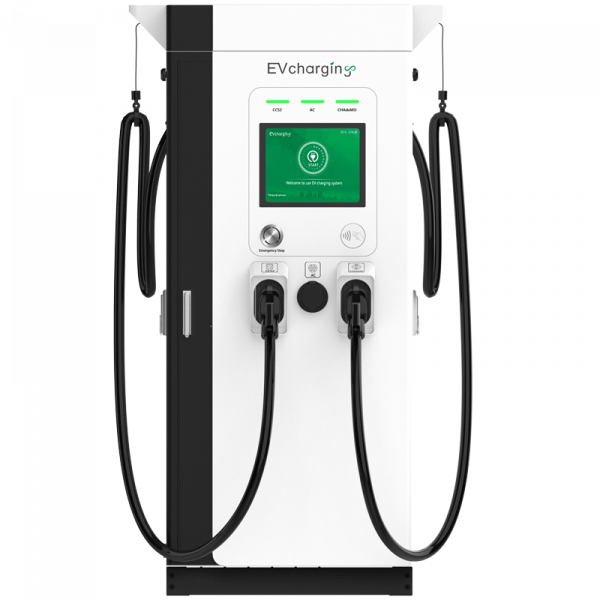

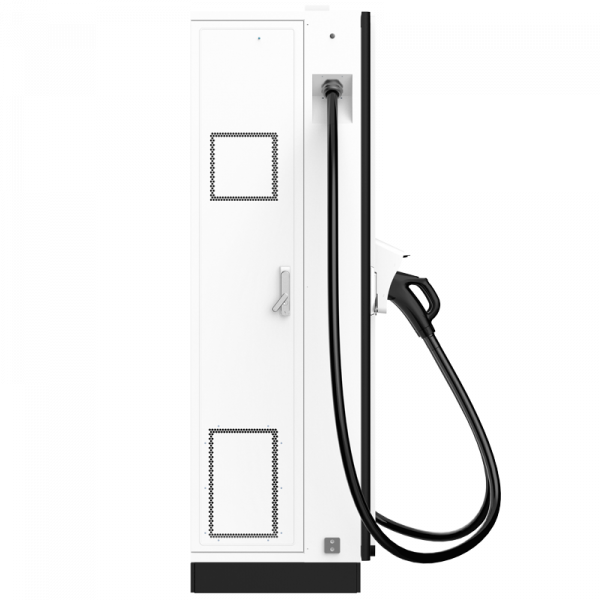

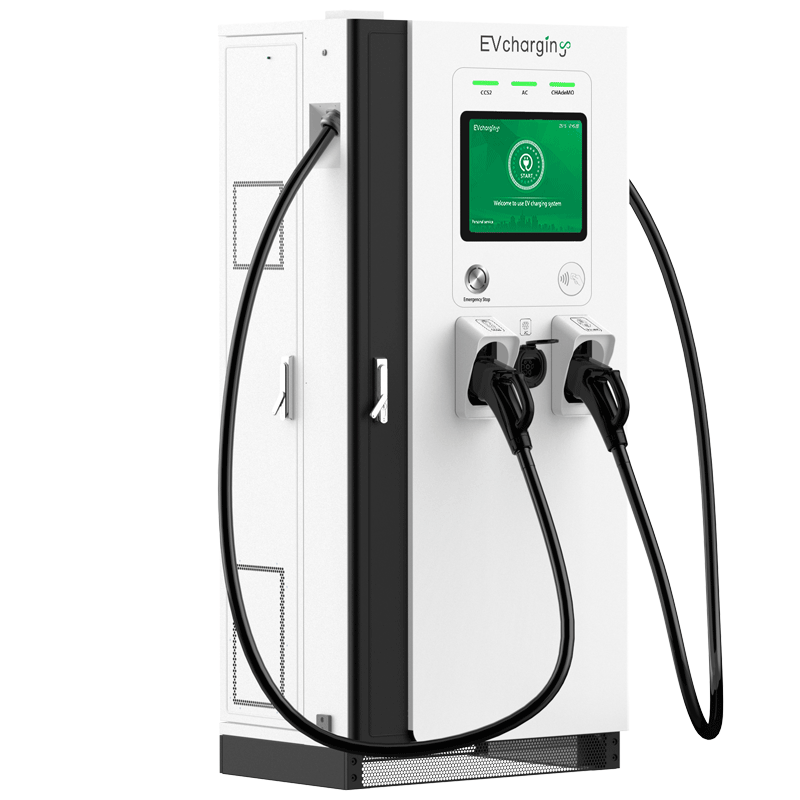

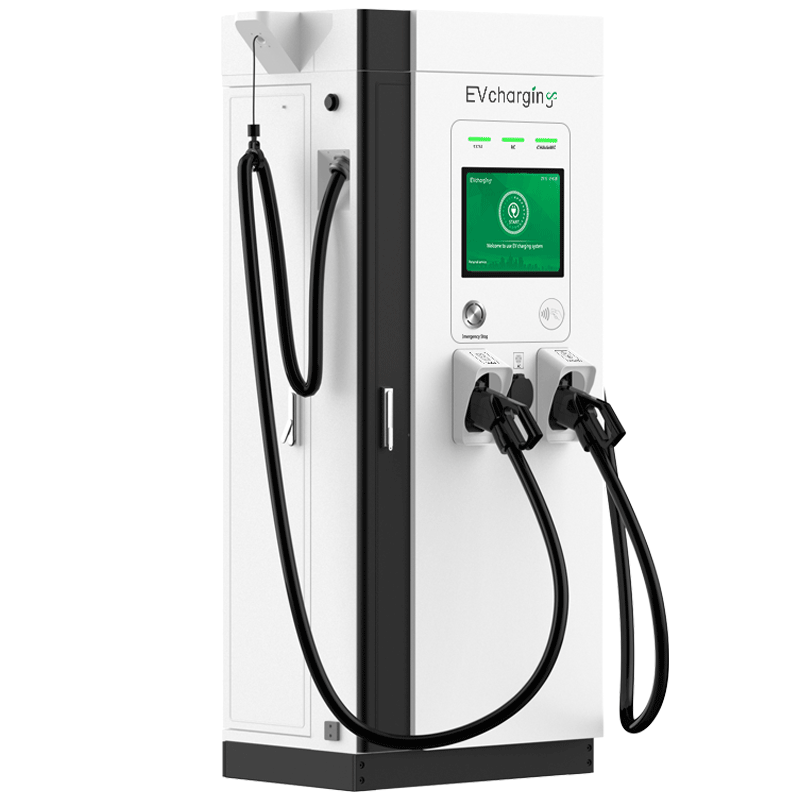

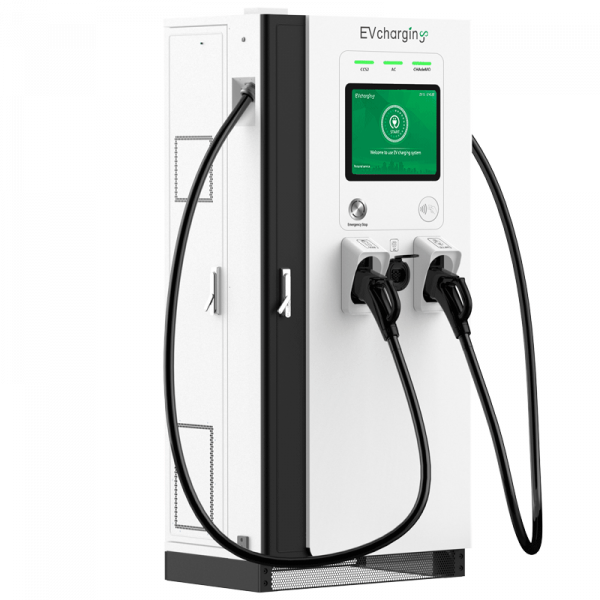

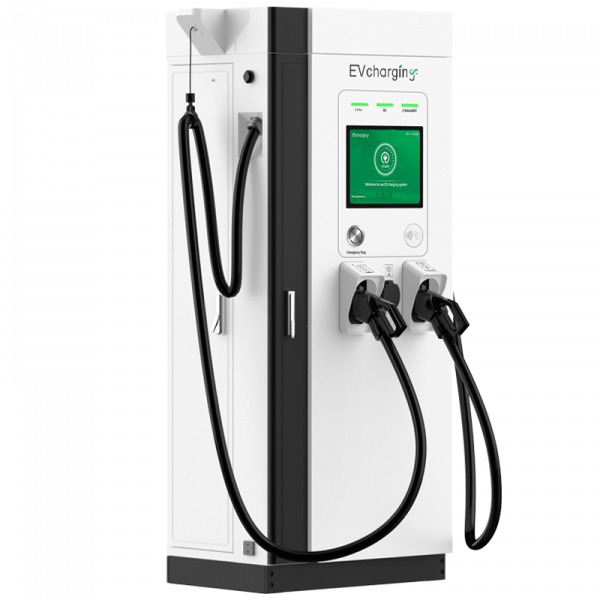

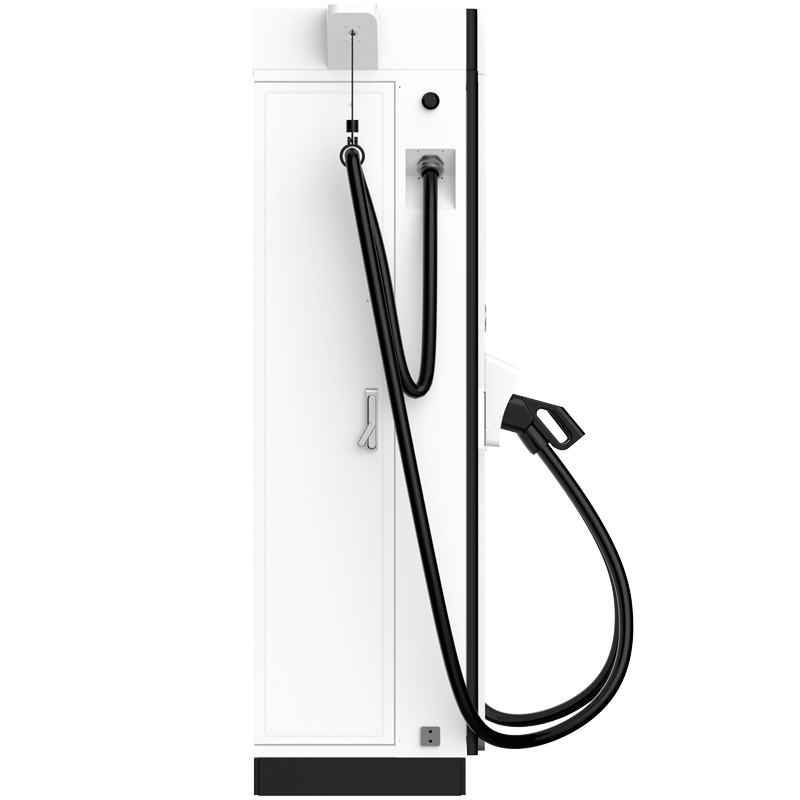

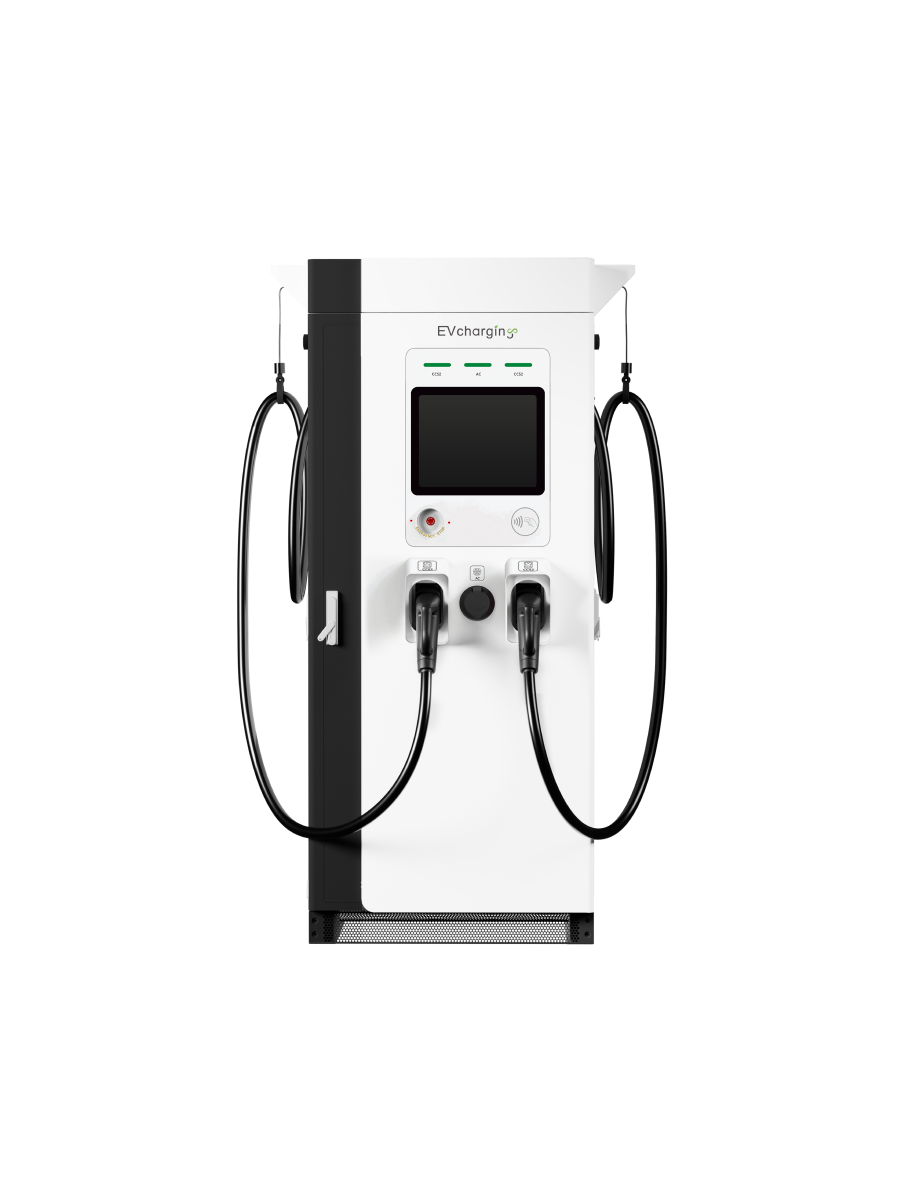

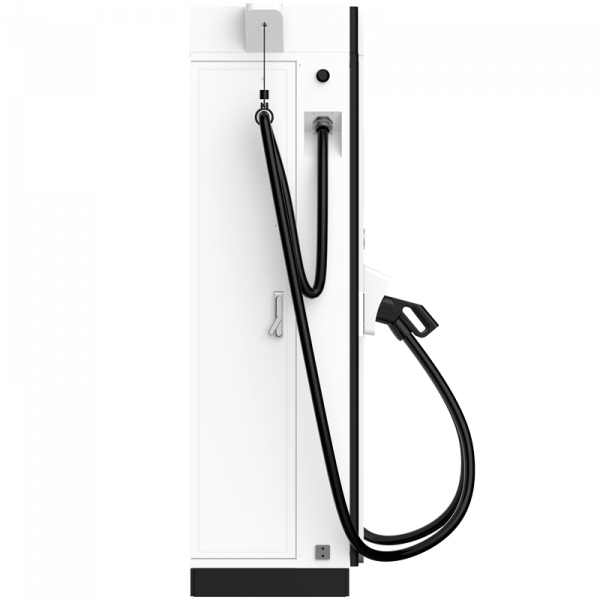

80-160kW Atlas DC Fast Charger

With a simple design, unique module pre-installation design. Engineered with cutting – edge safety protocols and universal compatibility across all electric vehicle makes and models, our intelligent DC fast charger delivers rapid, high – efficiency charging, ensuring seamless readiness for future EV advancements.

Document Download
Get a Quote
15
No. T8AUK 116724 0008 Rev. 00_CERT.pdf - Page 1 of 3
No. T8AUK 116724 0007 Rev. 00.pdf - Page 1 of 2
No. T8A 116724 0005 Rev. 02_CERT.pdf - Page 1 of 3
Previous image
Next image

Product Details

Safe and Reliable
53-fold electrical protections
Stainless steel cabinet
Smart charging
Easy Maintenance
Unique module pre-installation design
Automatic inspection platform
Remote diagnostics and OTA upgrade
Exceptional User Experience
Low noise design, ≤ 60 dB
Support APP, NFC, credit card, PNC
User-friendly cable retraction system
Future Proof
Support parallel design to meet future high-power charging needs
CCS 1, CCS 2, CHAdeMO, GB/T
Built-in 10 + languages

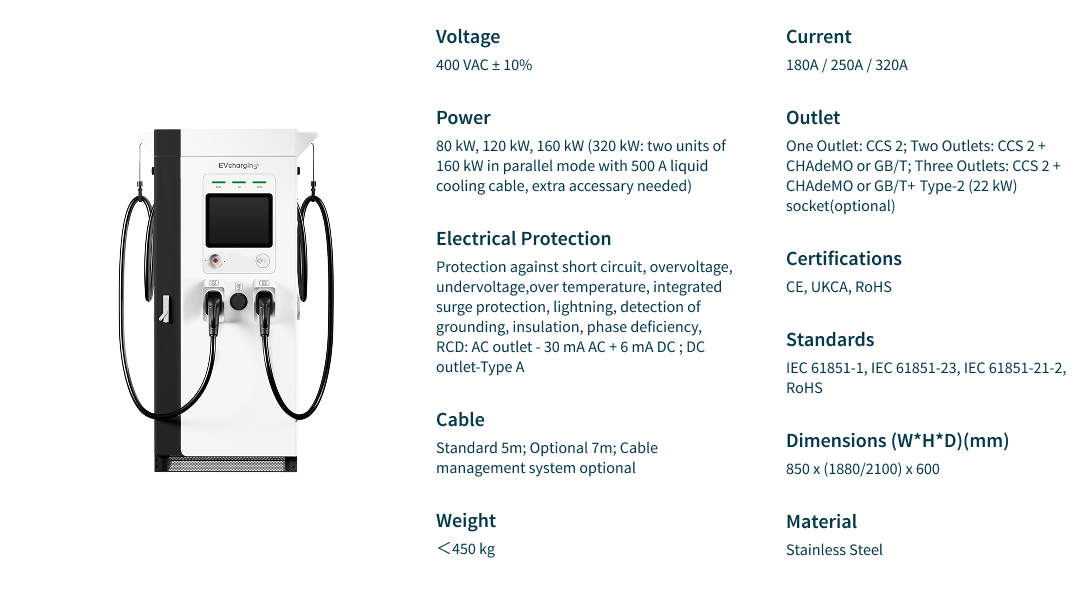

Specification

Voltage
400 VAC ± 10%
Cable
Standard 5m; Optional 7m; Cable management system optional
Weight
＜450 kg
Power
80 kW, 120 kW, 160 kW (320 kW: two units of 160 kW in parallel mode with 500 A liquid cooling cable, extra accessary needed)
Electrical Protection
Protection against short circuit, overvoltage, undervoltage,over temperature, integrated surge protection, lightning, detection of grounding, insulation, phase deficiency, RCD: AC outlet - 30 mA AC + 6 mA DC ; DC outlet-Type A
Current
180A / 250A / 320A
Certifications
CE, UKCA, RoHS
Standards
IEC 61851-1, IEC 61851-23, IEC 61851-21-2, RoHS
Dimensions (W*H*D)(mm)
850 x (1880/2100) x 600
Material
Stainless Steel
Outlet
One Outlet: CCS 2; Two Outlets: CCS 2 + CHAdeMO or GB/T; Three Outlets: CCS 2 + CHAdeMO or GB/T+ Type-2 (22 kW) socket(optional)
