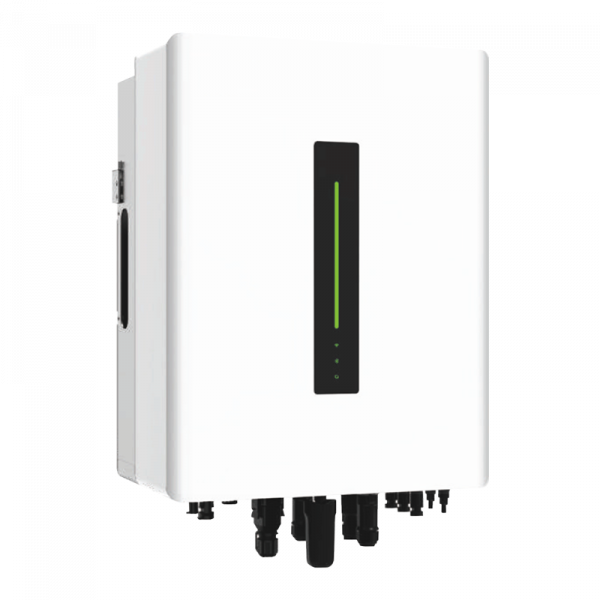

10-20kW Three-phase Hybrid Inverter

Document Download
Get a Quote
15
No. T8AUK 116724 0008 Rev. 00_CERT.pdf - Page 1 of 3
No. T8AUK 116724 0007 Rev. 00.pdf - Page 1 of 2
No. T8A 116724 0005 Rev. 02_CERT.pdf - Page 1 of 3
Previous image
Next image

Product Details

Supports PV inverter, generators, and microgrid inputs, suitable for new and modified photovoltaic and microgrid systems
Mains and PV input power oversized at a ratio of 1.5, resulting in a more stable system operation
App real-time monitoring, supports online remote OTA upgrades, easy operation and maintenance
Support RSD and AFCI optional configurations to provide safer protection for the system
Supports multiple inverters with EPS output in parallel, and can be expanded to small industrial and commercial applications

Specification

PV Input Power
20kW; 30kW
Battery Type
Lithium battery
AC Input Current
22.8A; 34.2A; 40A
Max. Output Current
15.2A; 22.8A; 30.4A
Dimensions(WxHxD)(mm)
450 x 600 x 270
Weight
45kg
PV Input Voltage Range
160VDC - 1000VDC
Max. Charge/Discharge Current
50A / 50A
Rated Output Power
10kVA/ 10kW; 15kVA/ 15kW; 20kVA/ 20kW
Installation Method
Wall-mounted
Protection
Over/under voltage, over/under-frequency, over load, output short-circuit, over temperature, residual current monitoring unit, output over-current, insulation resistance detection,anti islanding, surge protection
